FORG3D Rendering Tool Documentation#

Welcome to the FORG3D (Flexible Object Rendering for Generation of 3D Vision-Language Spatial Reasoning Datasets) documentation.

Overview#

FORG3D is a 3D rendering tool that places two Blender objects in a customizable scene, allowing control over object positions, orientations, and camera configurations. It supports both single and batch image generation for research in spatial reasoning and AI vision tasks.

Tip

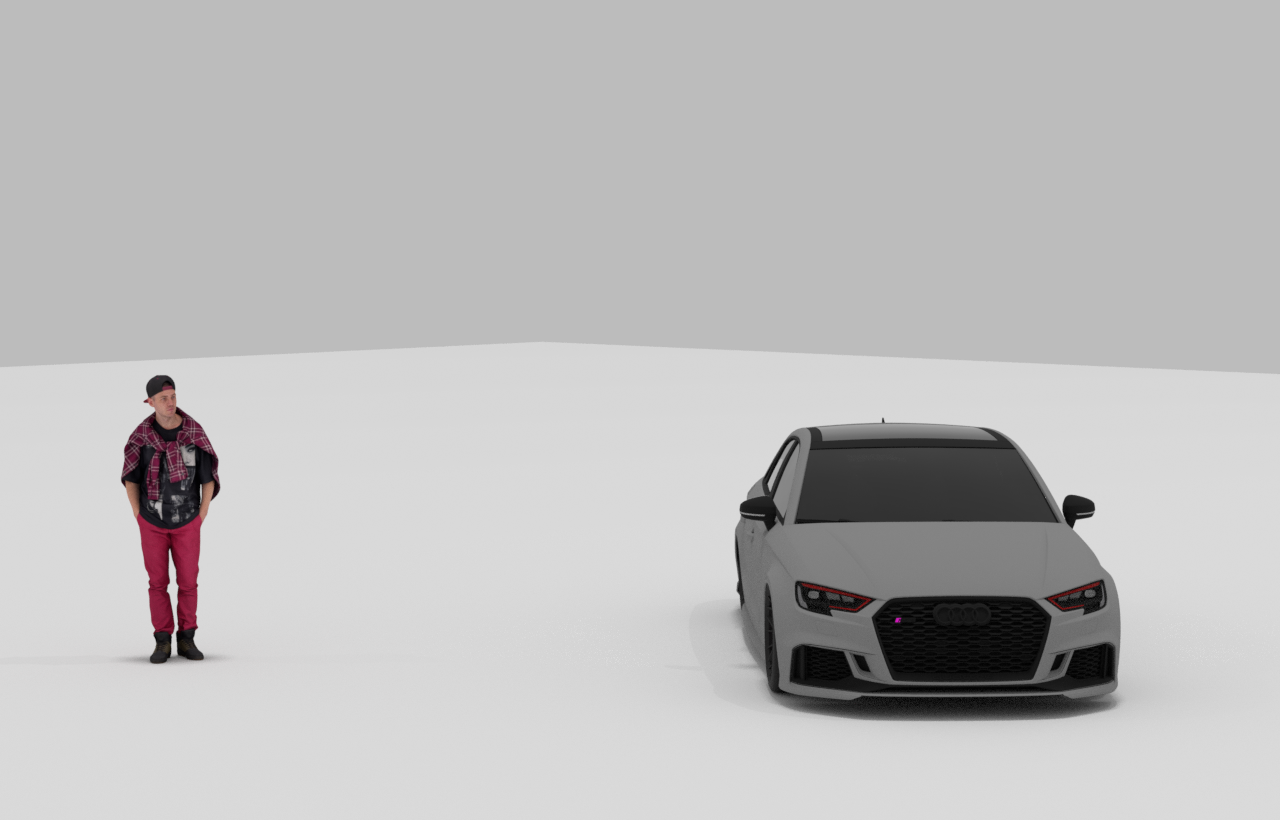

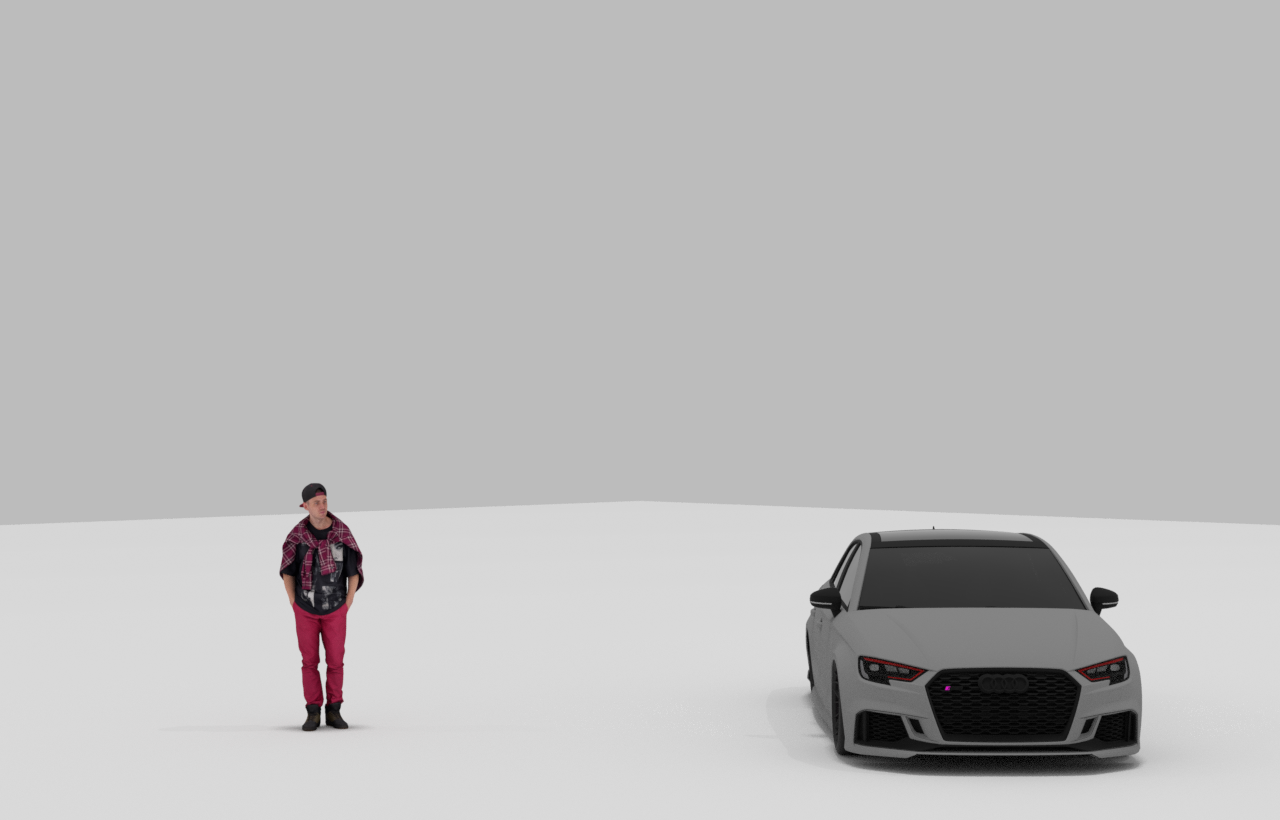

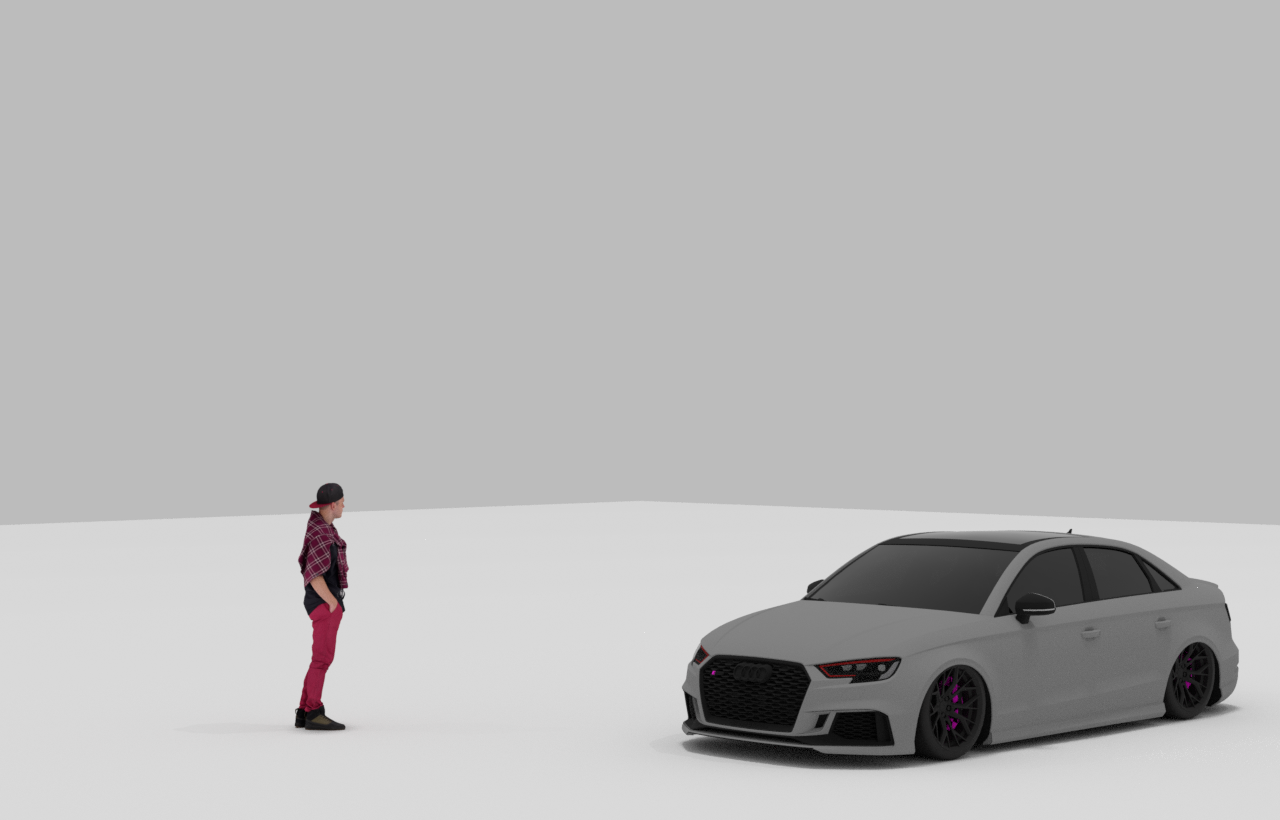

Here is an example rendered scene, and the same scene with different camera configurations, different object rotations, and different relative positions:

Tip

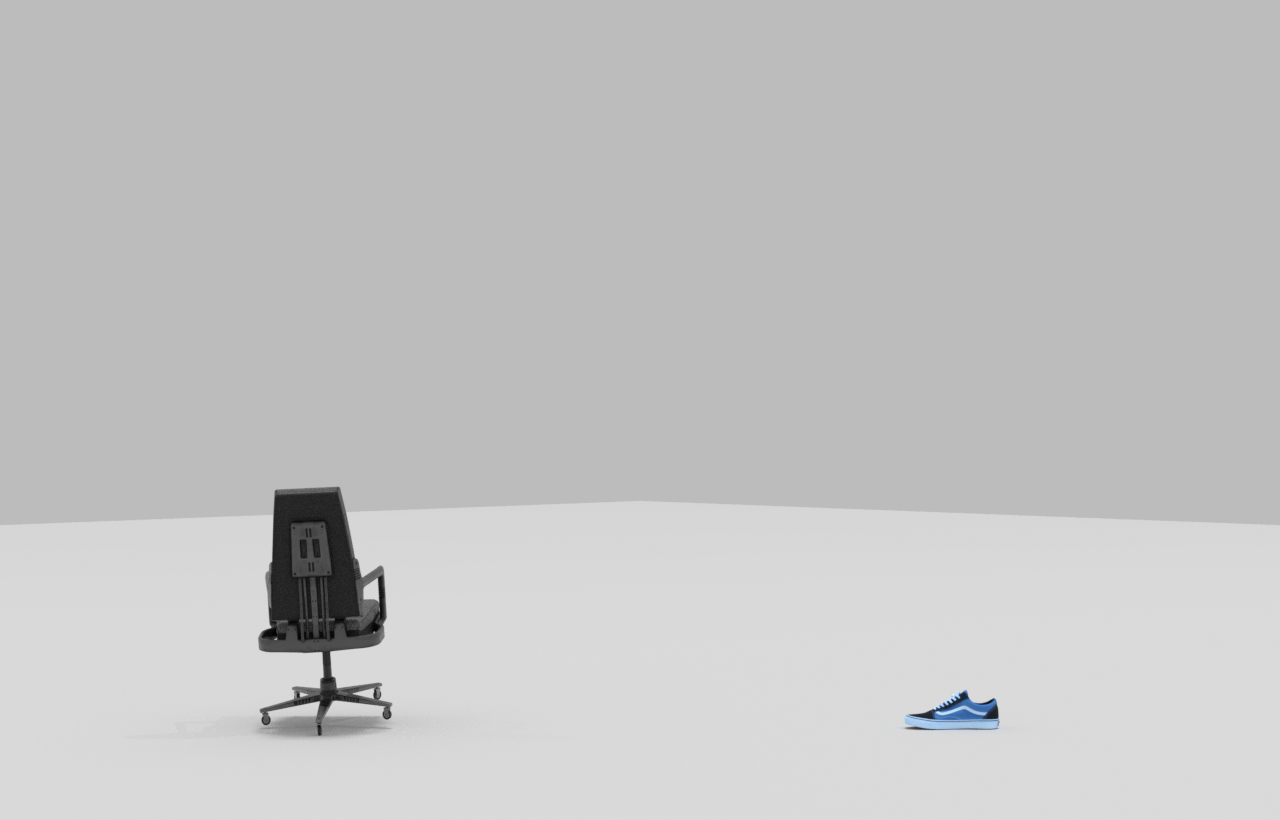

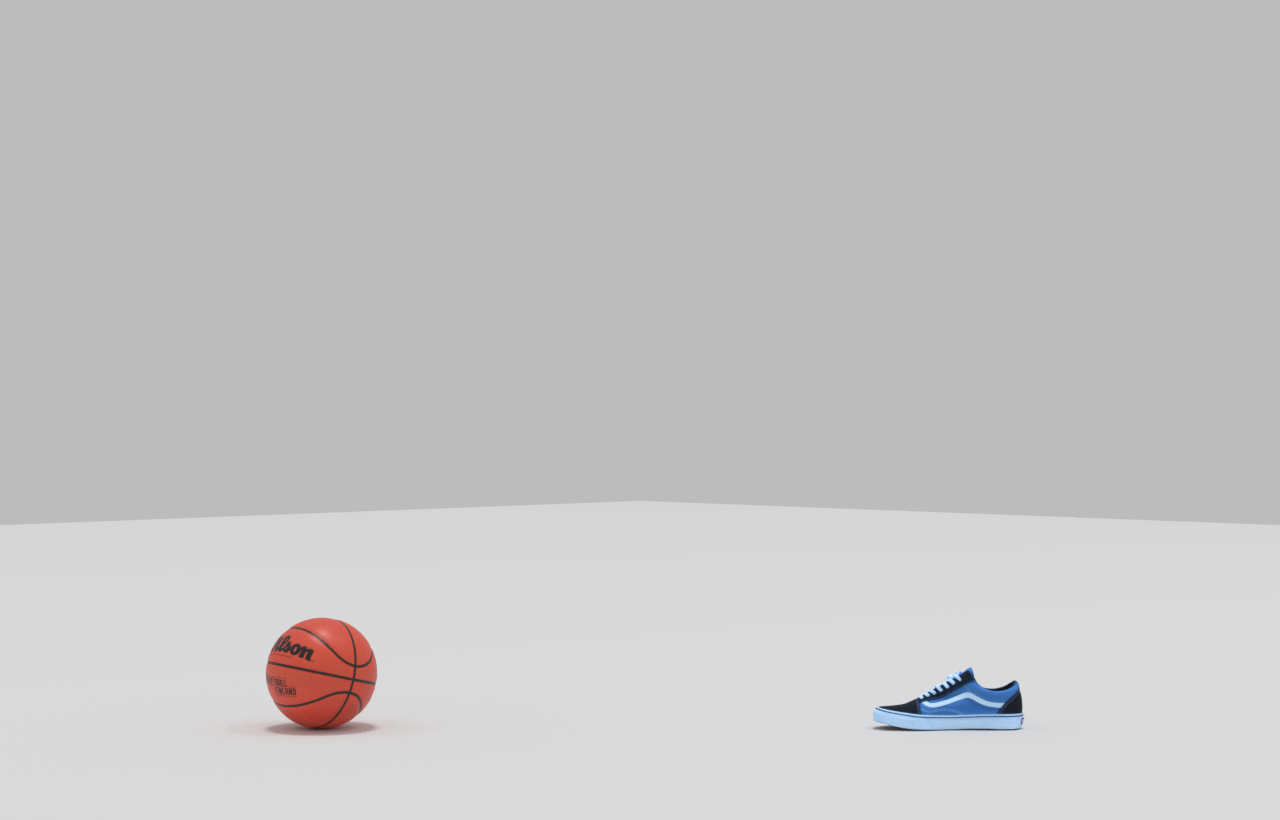

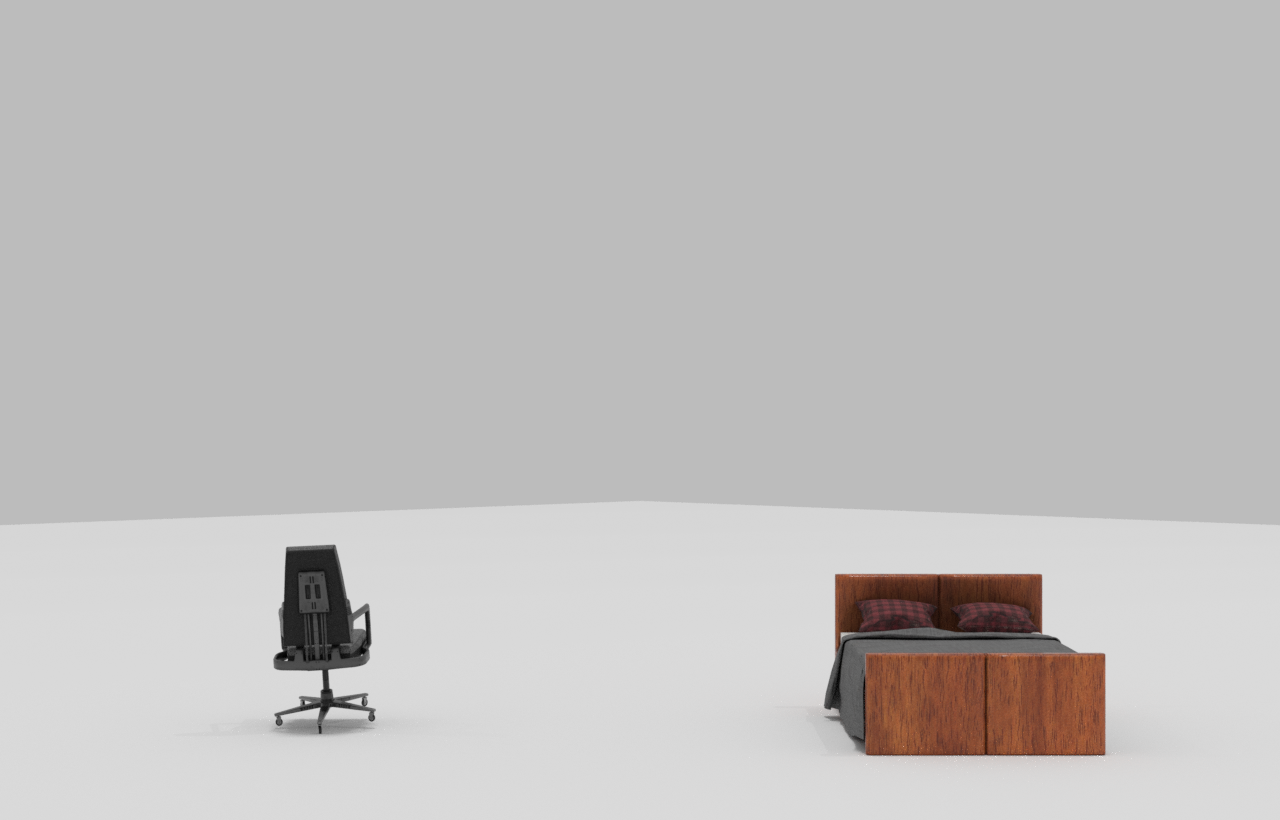

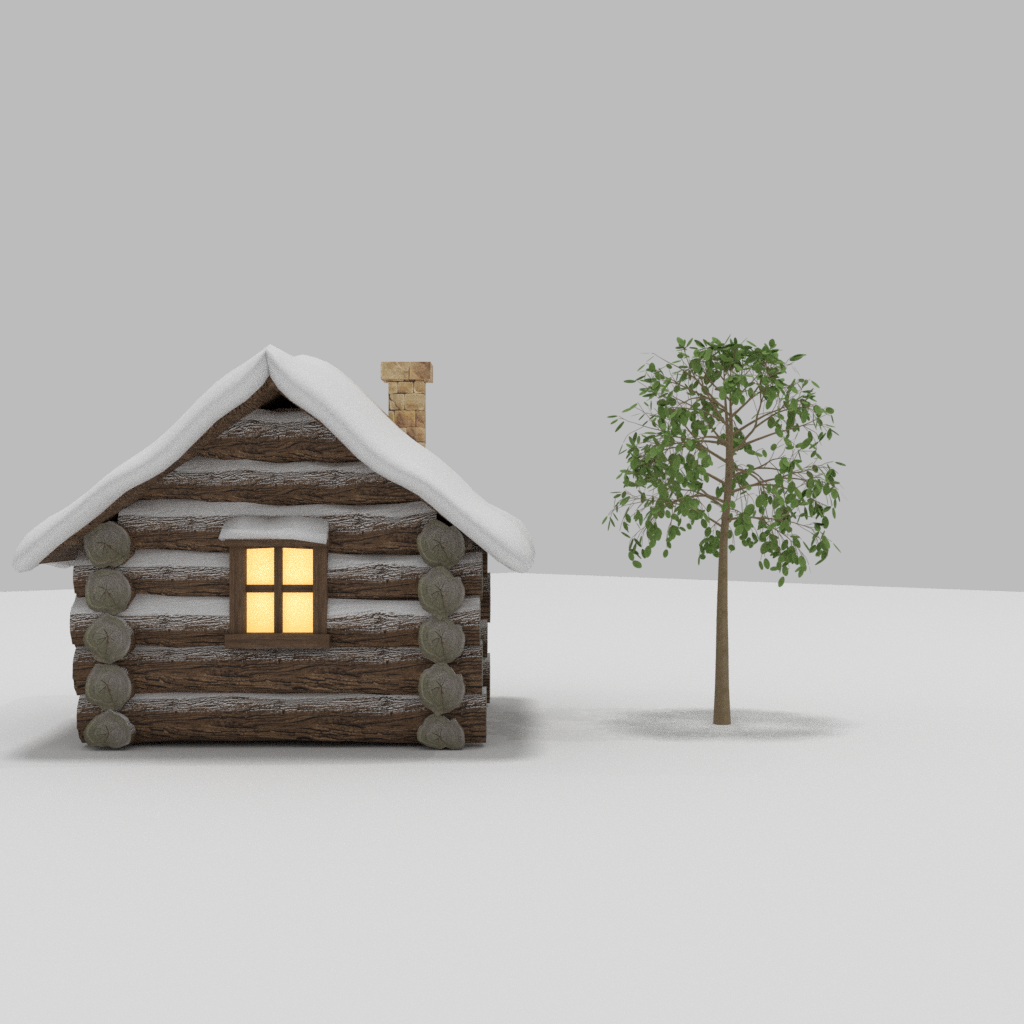

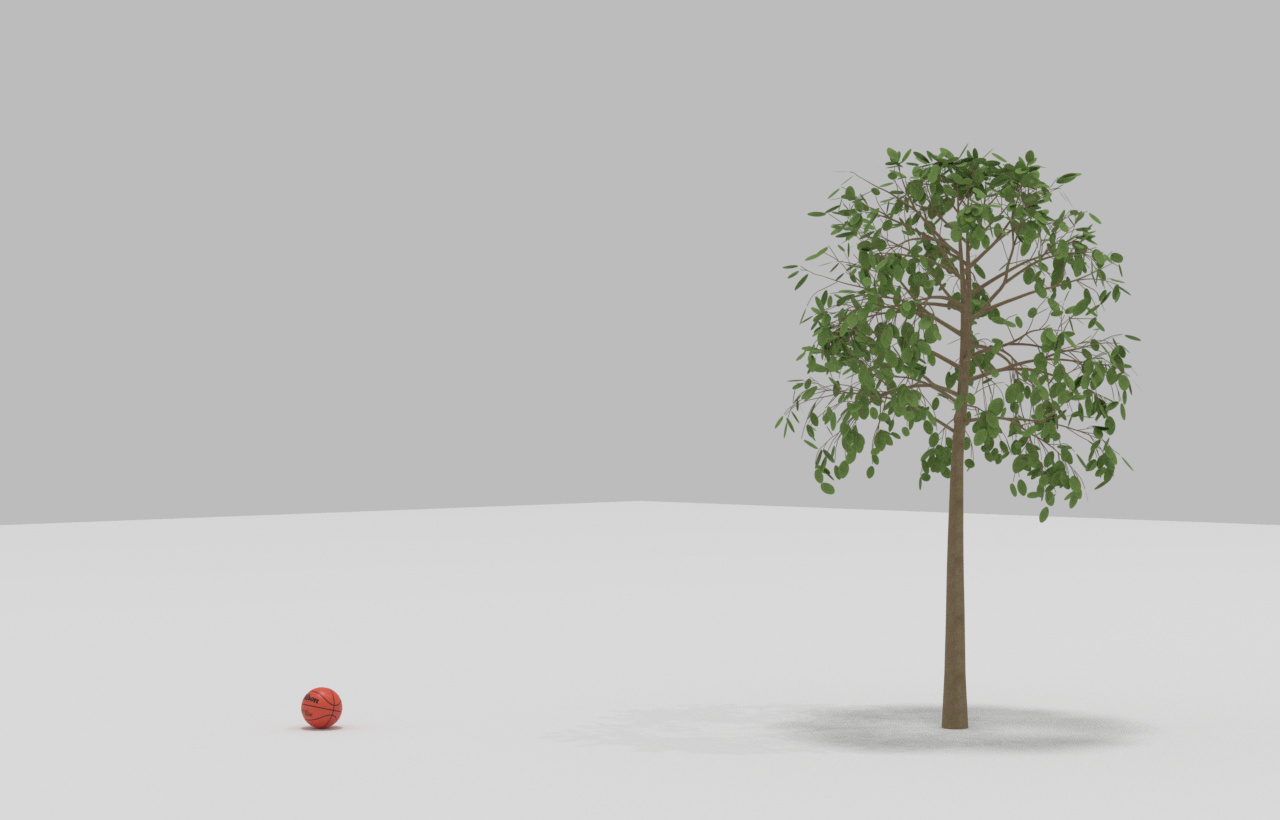

Here are some examples rendered scenes with various objects of various size groups:

Setup#

Clone the Repository#

git clone https://github.com/compling-wat/FORG3D.git
cd FORG3D

Install Blender 4.3#

Download and install Blender 4.3 for your system.

Set Up the Environment#

  1. Locate your Blender installation:

    which blender   # or 'where blender' on Windows

  2. Navigate into Blender’s site-packages directory:

    cd /path/to/blender/site-packages/

  3. Create a .pth file named FORG3D.pth:

    echo "/path/to/FORG3D/src" > /path/to/blender/site-packages/FORG3D.pth

    Note

    On Windows, ensure the file is saved with UTF-8 with BOM encoding.

Load Preset Objects#

Use the provided script to download and load 21 preset objects:

cd data
./load_objects.sh

To add your own objects, place .blend files in data/objaverse/shapes/ and register them in properties.json.

Usage#

Scripts are located in the scripts folder. First navigate there:

cd scripts

Camera Settings#

You can set specific camera parameters in the rendering script:

--camera-tilt X                # Tilt angle in degrees
--camera-pan X                 # Pan angle in degrees
--camera-height X              # Camera height in meters
--camera-focal-length X        # Focal length in mm

Rendering Multiple Images#

Use --render-random to generate multiple image combinations.

Each pair of objects will be rendered with the following directional subdirectories:

  • [object1]_[object2]_left

  • [object1]_[object2]_right

  • [object1]_[object2]_front

  • [object1]_[object2]_behind

Each image has an associated JSON metadata file describing camera settings and object configuration.

Additional flags:

--objects [list]               # Specific objects to use
--distance-between-objects X  # Distance in meters (default: 3)
--max-images N                # Max images per subdirectory
--max-camera-configs N        # Max camera configurations per image

Note

If --objects is not specified, all objects in data/ are used. If --max-camera-configs is not specified, a fixed camera config is required.

Rendering a Single Image#

Use render_single.sh for generating a controlled single image:

--direction [left|right|behind|front]   # Position of object 2 relative to object 1
--object1-rotation X                    # Rotation of object 1 (degrees clockwise)
--object2-rotation X                    # Rotation of object 2 (degrees clockwise)

Camera settings and --direction must be provided.

This is ideal for debugging placements and testing scene composition.

Adding AI-generated Backgrounds (Experimental)#

To enhance image realism, use generate_backgrounds.sh to add AI-generated backgrounds via the Stable Diffusion XL inpainting model:

Customize the background generation with the PROMPT (what you want the scene to include) and NEGATIVE_PROMPT (what you want to avoid in the scene) variables.

Tip

Here is an example of applying AI-generated backgrounds to a rendered scene:

Note

This feature is experimental and intended for testing dataset robustness to background variation.

Configuration#

General parameters such as output directories, resolution, and scene options are configured in src/config.json.

License#

This project is licensed under the MIT License.
